2020 Doosan PUMA TT2100SYYB
or
Call +34 605 087 617
Description

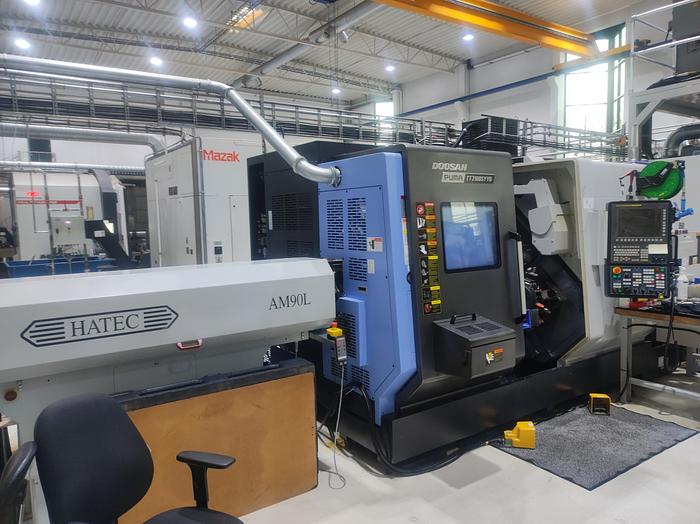

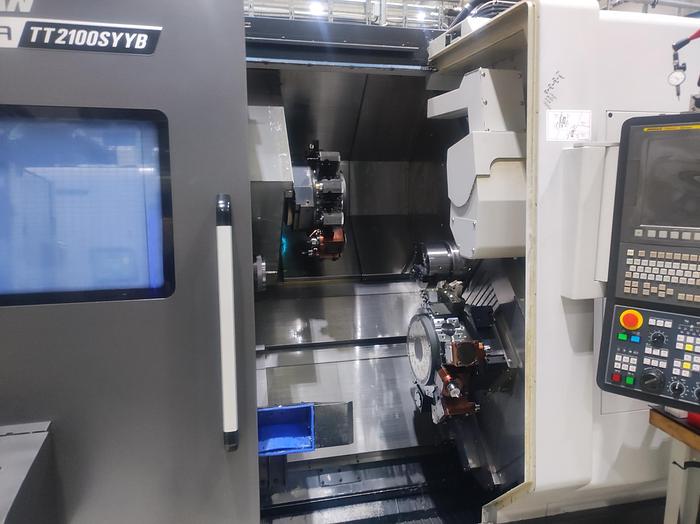

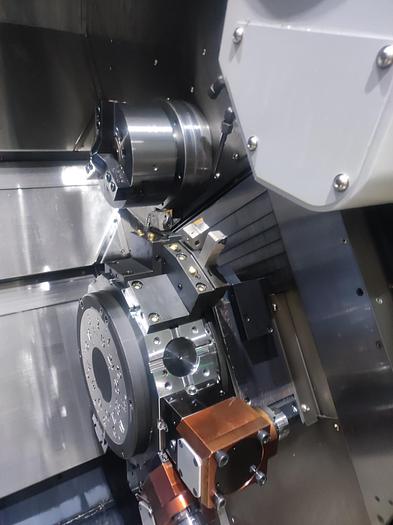

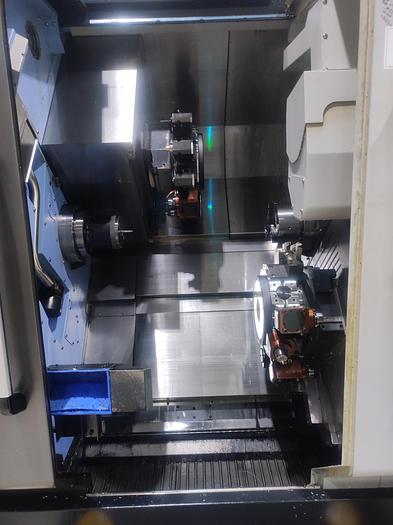

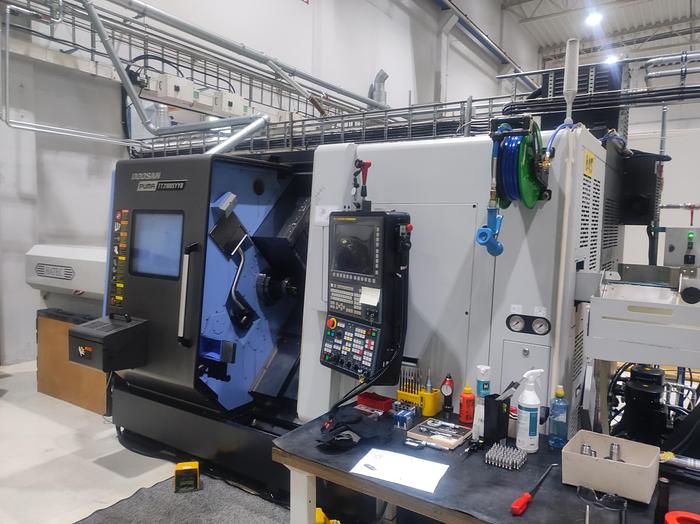

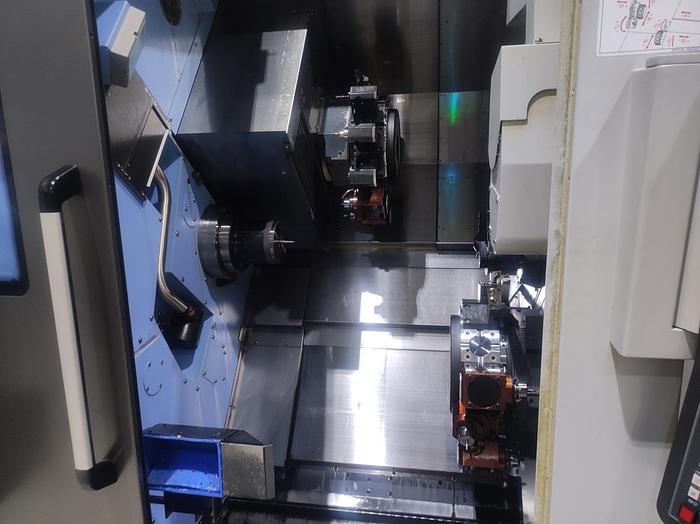

High-production motorized double-spindle and double-turret CNC lathe with Y-axis DOOSAN PUMA TT2100SYYB equipped with bar feeder.
Specifications
| Manufacturer | Doosan |
| Model | PUMA TT2100SYYB |
| Year | 2020 |
| Condition | Used |
| Stock Number | 67 |
| Distance between spindle noses | 980mm |
| Chuck Diameter | 254mm |
| Max. Turning Diameter | 230/230mm |
| Maximum Turning Length | 230mm |
| Bar Capacity | 81/65mm |
| Cross Movement (X1,X2) | 165mm |
| Longitudinal Movement (Z1,Z2) | 700mm |
| Y axis movement | 100mm (+/-50) |
| Rapid Feed X-axis | 30m/min |
| Rapid Feed Z-axis | 40m/min |
| Maximum Spindle Speed | 3,500/5,000 rpm |
| Spindle Motor Power | 22/25Kw |
| Spindle Nose | ASA A2-8 / ASA A2-6 |
| C-axis increase | 0.001º |
| Motorized Turret | 2 x (12+12) positions |
| Rotary Tools | 7.5Kw (10min) |
| Speed RotaryTools | 5,000 rpm |
| Machine dimensions | L 3,490/H 2,250/W 2,360 |
| Machine weight | 9.600Kg |
| 3-jaw Chuck | Included |
| Collet Chuck | Included |
| Left spindle parts cathcher | Included (with box) |
| Right spindle parts catcher | Included (with piece extractor clamp and conveyor belt) |
| Through-Tool Cooling | Included 2 x 25bar |
| Tool pre-setter | Included |
| Tool load monitoring | Included |
| Automatic Power off | Included |
| Chip conveyor | Included |
| Oil mskimmer | Included |
| 1.5m bar feeder | Included- Hatec AML90 |
| Complete set of tool holders | Included (with motorized) |
| Machine Condition | Almost new |
| Visible in operation | Immediate delivery |
