2006 HYUNDAI SKT15LMS
Featured
or
Call +34 605 087 617
Description

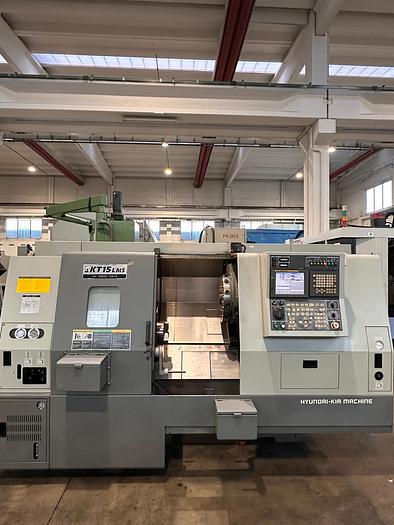

CNC LATHE WITH DRIVEN TOOLS AND SUBSPINDLE
Specifications
| Manufacturer | HYUNDAI |
| Model | SKT15LMS |
| Year | 2006 |
| Condition | Used |
| Stock Number | 68 |

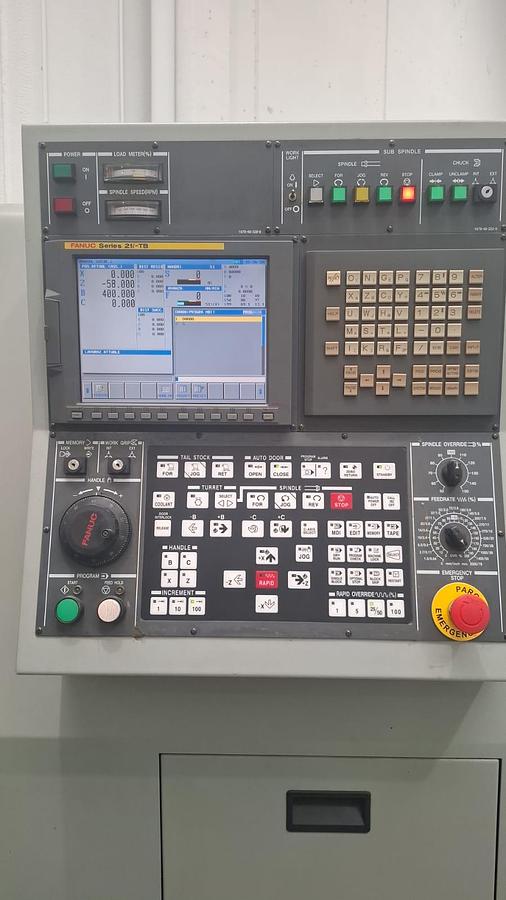

| CNC | FANUC 21i-TB |
| Swing over bed | 550mm |
| Swing over saddle | 350mm |
| Max. Turning Diameter | 255mm |
| Max. Turning length | 530mm |
| Distance between points | 788mm |
| Main/subspindle chuck diameter | Autoblok 210mm/Samchully |
| bar capacity | 39mm |
| Power Spindle head/Subspindle | 11kw/3.7kw |
| RPM Spindle /Subspindle | 6,000/5,000 |
| Spindle/Subspindle Nose | Asa/mm - 5/115 |
| X/Z/B Axis Travel | 220/550/780 |
| C1/C2 axis | 360º |
| Rapid traverses X/Z/B axes | 36/36/30 m/min |
| Rapid traverse C-axis | Min 100 |

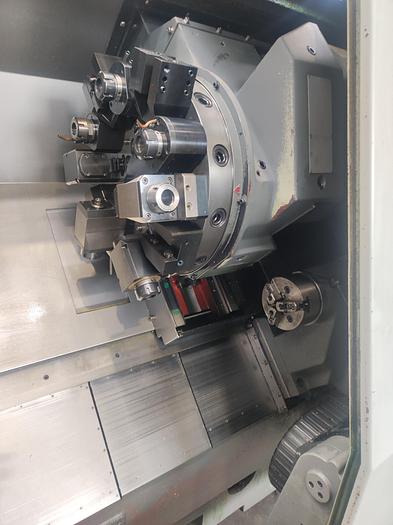

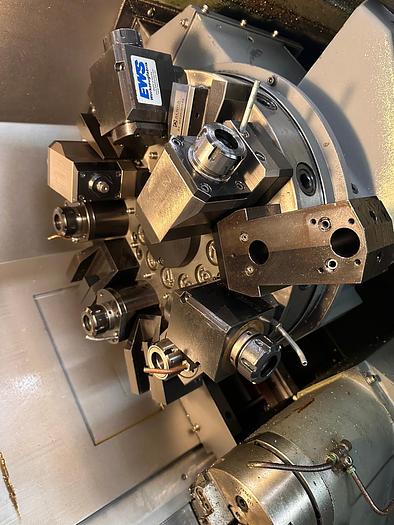

| Turret | 12 stations |
| Tool dimension | 25x25 Diameter 32 |
| Rotary tools RPM | 5,000 rpm |
| Main spindle chuck Autoblok 210 BH | Included |
| Samchully HS-05 subspindle chuck | Included |
| Tool setter | Included * |
| Machine Condition | Good condition.100% in operation. At sotck under power |
| Bar feeder 1'5M | Optional |
